Short description

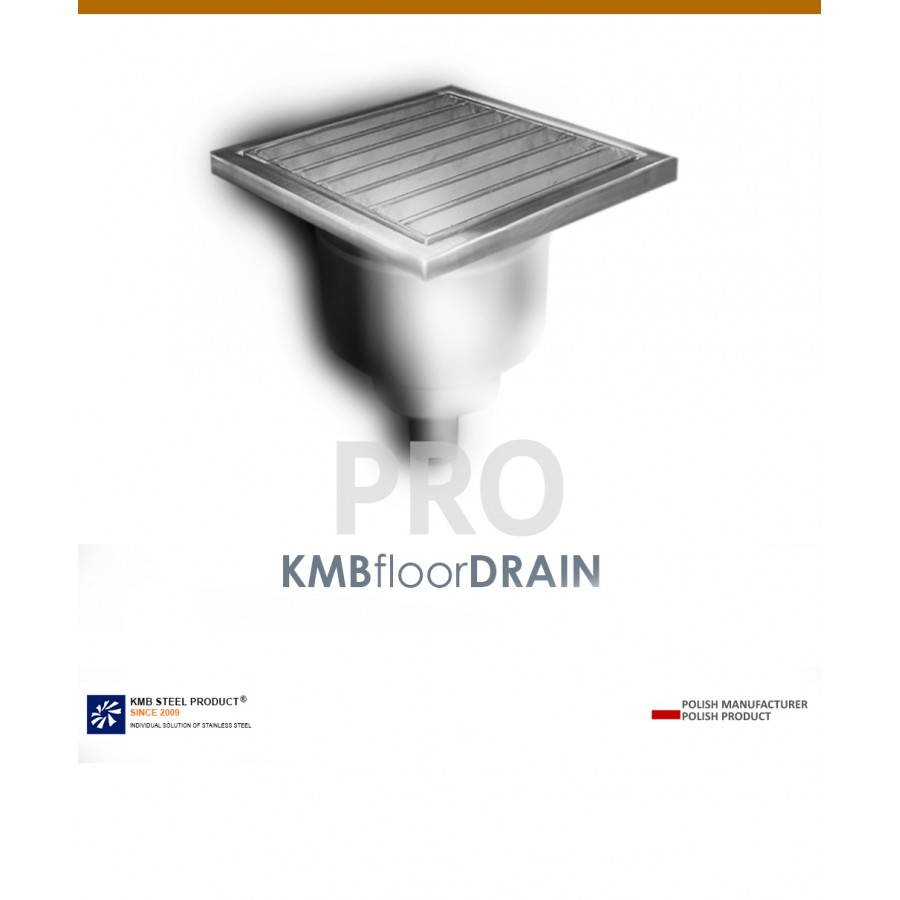

Stainless steel square floor gully PRO

named KP200-DN050-V1 to a professional PRO solution.

The price of the drain includes accessories: a grate, a siphon basket, and a siphon.

For the drain grate, please select the appropriate type of covering grate in the drop-down list to the right of the product image.

The material is made of AISI 304 stainless steel. It is also possible to make AISI 316 stainless steel on special request. If there is an answer regarding the selection of the grate and a request to make a product of acid-resistant AISI 316 steel -

- please contact the main technical department, tel. +48 511 098 312.

  Regulations

>>> all rules in our Store

  Shipments and returns

>>> returns rules

  Delivery

>>> delivery in every EU country rules

PRO KP200-D050-V1- Stainless steel square floor gully

Short description

Stainless steel square floor gully PRO

named KP200-DN050-V1 to a professional PRO solution.

The price of the drain includes accessories: a grate, a siphon basket, and a siphon.

For the drain grate, please select the appropriate type of covering grate in the drop-down list to the right of the product image.

The material is made of AISI 304 stainless steel. It is also possible to make AISI 316 stainless steel on special request. If there is an answer regarding the selection of the grate and a request to make a product of acid-resistant AISI 316 steel -

- please contact the main technical department, tel. +48 511 098 312.

  Regulations

>>> all rules in our Store

  Shipments and returns

>>> returns rules

  Delivery

>>> delivery in every EU country rules

€198.82
VAT included
Grate type
Quantity
Shipping within 48 hours

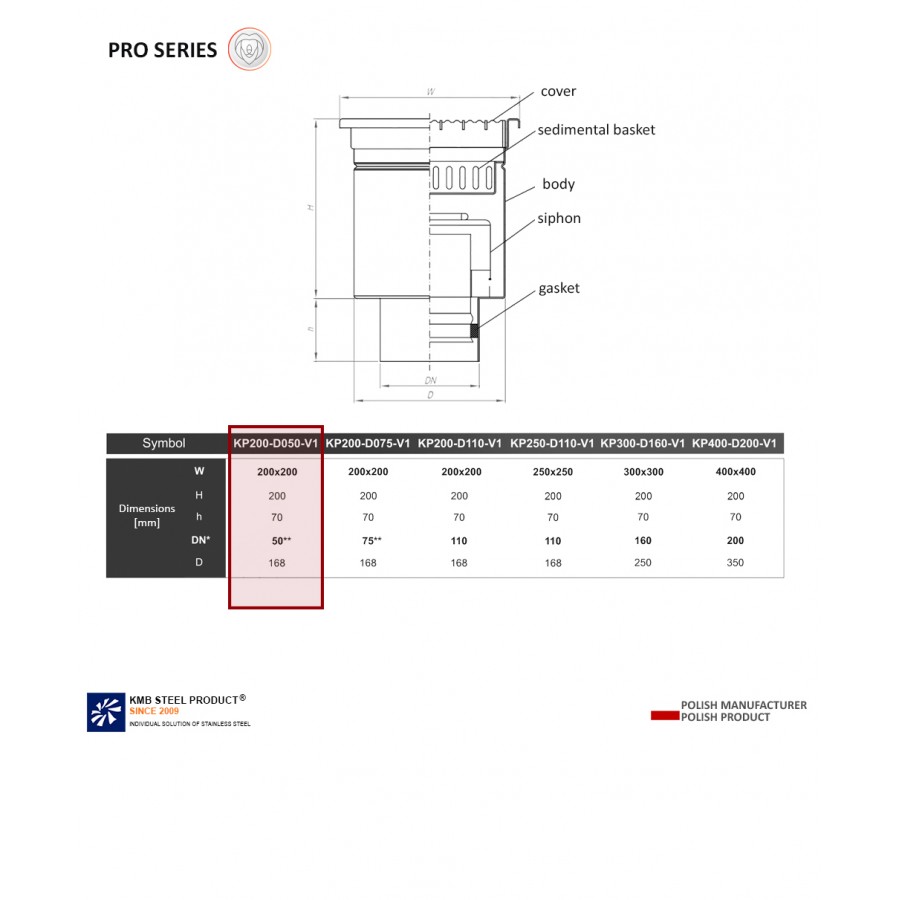

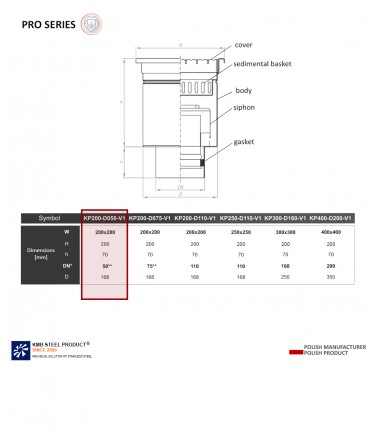

The KP200 gully means the dimension of the top of the drain 200 x 200 mm, DN050 is the drain entering the pipe with a diameter of 050, V1 is a type of drain - VERTICAL, i.e. vertical.

Attributes:

PRO SERIES

PRO SERIES - Lion attribute - Leader in water management - high capacity - maximum drainage

PRO-KP200-D050-V1-D30

Data sheet

Grate type:
Ladder
Grate type:
Plate
Grate type:
Perforated sheet
Grate type:
Anti-slip mesh grating
Drain diameter:
DN050
Top part dimension:
200x200 mm
Type of outlet:
Vertical - V
Number of body parts:
1 - one module
